deSoutter Medical


CC4 system
  • Introduction
  • Features
  • Extractor

Tech Specs
Images
Downloads
Enquiry Form
Share This
AccessoriesAccessories


Technical Information

Handpiece
Oscillating speed: 14,000 (or 16,000) cpm
Voltage: 230 (or 120) Vac
Weight: 1,300g
Sound level: 70 dB(A)
Length: 333 mm


Extractor
Motor power (max): 1 kW
Supply voltage: 240 or 100 - 120 Vac
Supply frequency: 50 - 60 Hz
Suction: 2,500 water gauge mm
Filtration: 99.997% > 0.5 microns
Dust bag capacity: 7.5 litres
Sound level: 58 dB(A)


Image Gallery




Download Product Catalogue

Download Product Catalogue


Enquiry Form


Name*

Organisation/Employer Name*

Email Address*

Address

Telephone Number

Best time to call

Information required

Submit
Add me to the De Soutter mailing list for news and special offers


Share This

Email

Subject

Message


Introduction

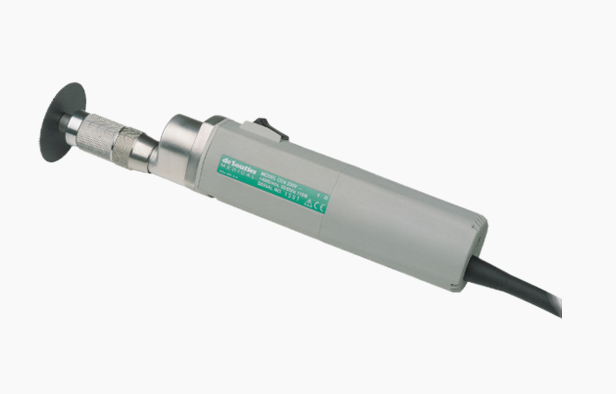

  • The CC4 cast saw with its powerful 110 watt motor maintains rapid and efficient cutting on the thickest of body casts.









Features


Features
  • The knurled grip close to the cast saw blade provides the operator with excellent control and flexibility of movement

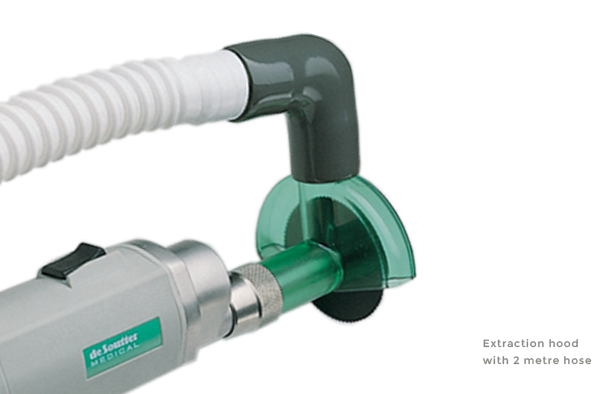

  • An optional clear extraction hood ensures good visibility when cutting. The hood is fully rotatable to suit the most convenient cutting position



Extractor


Extractor

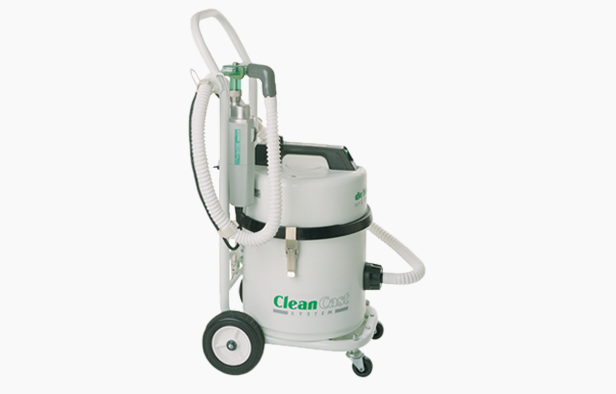

  • The CleanCast™ extractor has a four stage filtration system consisting of an easy to change synthetic collection bag, two cloth filters and a micro filter
  • The Hepa-flo microfilter retains 99.997% of all dust particles greater than 0.5 microns, providing a safe working environment for all.
  • The suction rate can be switched between powerful ‘high’ and quiet ‘low’ setting to suit operator and patient convenience
